Description

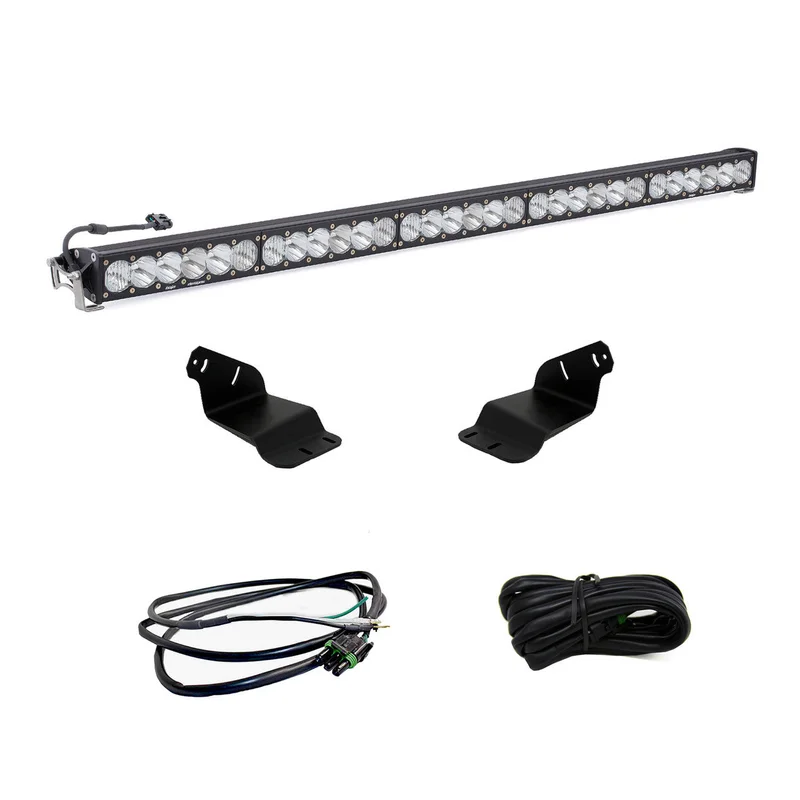

Carefully designed to be the ultimate roof mounted light bar kit for Ford Bronco. The 50 inch OnX6+ Light Bar combines far reaching, high speed spot reflectors with the Baja Designs Driving Combo lens for a smooth yet intense pattern that will light up the whole trail. With this functionality you will be able to meter your light bar for all situations. This kit includes a 50 inch OnX6+ LED Light Bar, vehicle specific mounting brackets, hardware, and x2 upfitter wiring to make installation a breeze. No cutting, trimming, or drilling is required and all wiring is pre-sized for your vehicle.
Baja Designs Features:
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
DETAILED SPECS:
SKU: 455003
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 50 |
| Weight (lbs.) | 18.65 |
Specifications
| Amperage Rating (A) | 28.2 (High) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 39,430 (High) |
| Straight; Driving/Combo; Clear | |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | High Beam/Low Beam |
| Lighting Quantity | 30 |
| Lighting Type | LED |
| Lighting Technology | Forward Projecting |
| Mounting Hardware | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 50 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 355 (High) |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
