Description

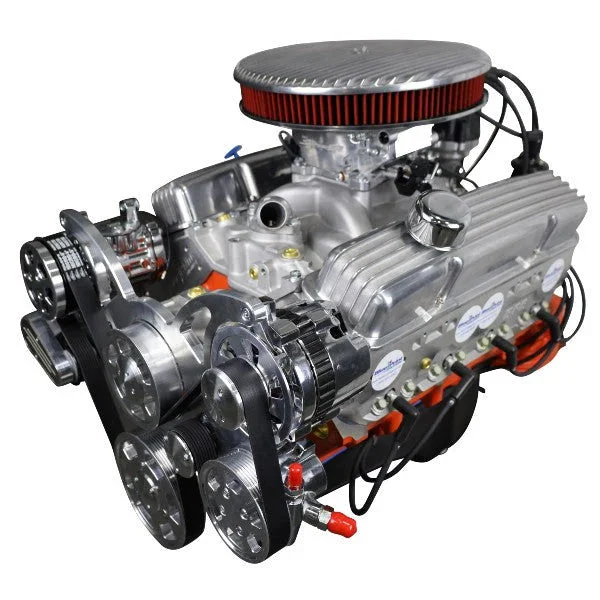

This BluePrint Engines BP3505CT GM Long Block Crate Engine 350 Small Block produces 390 horsepower and 410 ft./lbs. of torque. It comes with aluminum cylinder heads as well as a hydraulic roller camshaft. It also has Hypereutectic pistons as well as a cast crankshaft, and features a 9.2:1 compression ratio.
This engine also includes valve covers, oil pan as well as a timing cover. A mechanical fuel pump provision and a passenger side dipstick are also included.
BluePrint Engines recommends 91 octane gasoline as well as 32 degrees total ignition timing at 3500 RPM. A 670 cfm carburetor is also recommended.
This engine comes with an industry-leading 30-Month/50,000 mile warranty!
Manufactured and Machined in the USA!
BluePrint Engines BP3505CT GM 350 Small Block Long Block Specs:
- Engine Family: Small Block Chevy
- Displacement: 350 CID
- Horsepower: 390
- Torque Ft./Lbs: 410
- Compression Ratio: 9.2:1
- Block Material: Cast Iron
- Bore: 4.000 in.
- Stroke: 3.48 in.
- Piston Type: Hypereutectic
- Cylinder Head Material: Aluminum
- Cylinder Head Chamber Volume: 64cc
- Intake Valve Size: 2.02 in.
- Exhaust Valve Size: 1.60 in.
- Intake Runner Size: 195cc
- Exhaust Runner Size: 75cc
- Crankshaft Material: Cast
- Engine Balance: Internal/External
- Rear Main Seal Type: 1-piece
- Camshaft Style: Hydraulic Roller
- Valve Lift Intake: .495
- Valve Lift Exhaust: .502
- Intake Duration at .050″: 220
- Exhaust Duration at .050″: 224
- Lobe Separation: 114
- Quantity: Sold individually
Note: Cylinder heads feature a .500 raised port
BluePrint Engines offers short blocks and long blocks, as well as turnkey engine assemblies in all of the popular GM, Ford, and Mopar configurations. They Dyno Test every engine, assuring an excellent choice for you as well as your customer.
