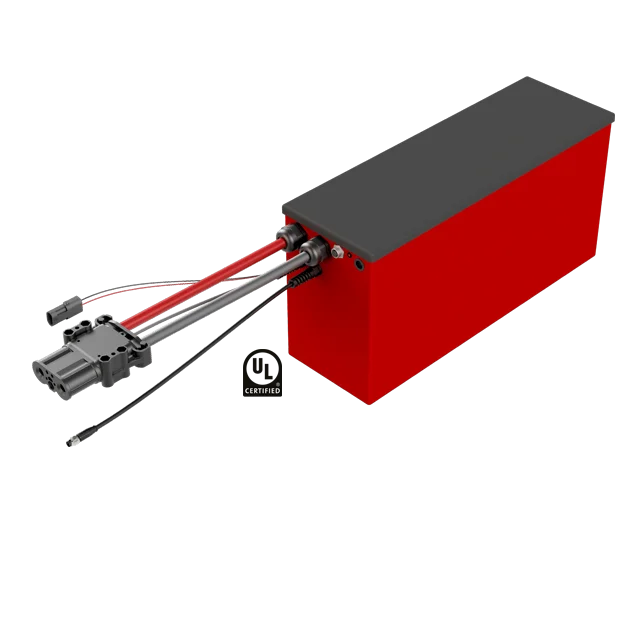

Lithionics GTX12V320A-E2107-DIN-12HK-UL 320 amp hours 12V Lithium Battery for External BMS

Description

Lithionics GTX12V320A-E2107-DIN-12HK-UL 320 amp hours 12V Lithium Battery for External BMS

MODEL NUMBER: GTX12V320A-E2107-DIN-12HK-UL

*SHIPS FREE!

ENERGY:

320 AMP HOURS

PULSE AMPS: 1200 (1 second)

4096 WATT-HOURS

EXTERNAL BMS REQUIRED

BMS SOLD SEPARATELY. SEE BMS DATA SHEET PROVIDED BY LITHIONICS BATTERY®.

CLICK HERE FOR MODULE BLUEPRINTS

Download Data Sheet

Item
Model:   GTX12V320A-E2107-DIN-12HK-ULNominal Voltage:   12.8 VoltsNominal Capacity:   320 AHNominal Watt Hours:   4096 WHInternal Resistance:   <3 milliohms
Charge
Charging temperature range:   32F/0C to 131F/55C OR -4F/-20C w/ Heater KitCharge voltage:   14.4V recommended, 14.6V maximumRecommended float charge voltage:   13.4V – 13.6VRecommended charge current:   150AAllowed max charge current:   250A
Discharge
Discharging temperature range:   -4F/-20C to 131F/55COutput Voltage Range:   11.6V to 13.4VRecommended discharge current:   150AMax discharge current:   250APulse discharge current:   1200A (1 SEC)Discharge cut-off voltage:   NeverDie® Power Reserve @ 12.00V Low-Voltage Cut-Off @11.6V
Mechanical characteristics
Length:   20.3inWidth:   6.6inHeight:   10.0inWeight:   Approx. 68lbs (30.8kg)
Storage
Storage Temperature & Humidity Range:  < 1 Month    -4~95°F (-20~35°C), 45~75%RH
< 3 Months   14~86°F (-10~30°C), 45~75%RH
Recommended storage59~95°F (15~35°C)，45%RH~75％RH
Self-discharge rate:   Residual capacity   ≤3% per month; ≤15% per year
Reversible capacity    ≤1.5%per month; ≤8% per year
Long Term Storage:

If the battery needs to be stored for > 3 months the voltage should be 13.2V (50%SOC), and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge & discharge cycle every six months.
