Description

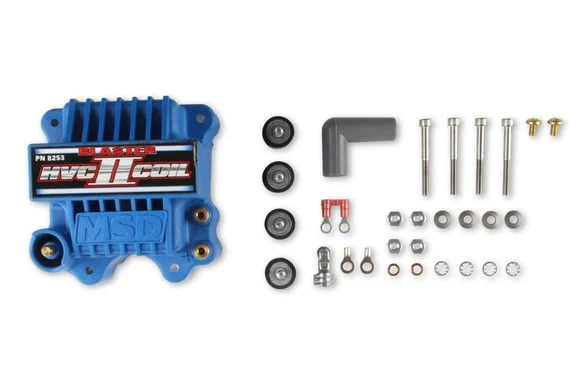

MSD designed this 8253 Street/Strip Blaster HVC-2 Ignition Coil as an upgrade from a stock coil to compliment the performance of your MSD 6 ignition! It features efficient windings, and a tough, rigid Rynite housing with an isolated tower as well as brass primary terminals.
This coil also utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage as well as lightening quick rise time. In addition, the efficient E-core windings produce high amounts of current without sacrificing the voltage output.
When used with an MSD 6 Series Ignition, the Blaster HVC-2 produces 300 milliamps of current as well as maximum voltage output of 44,000 volts!
MSD 8253 Street/Strip Blaster HVC-2 Ignition Coil Features:
- Designed for High RPM and Long Duration Applications
- Maximum Voltage: 44,000 Volts
- Inductance: 3.50 mH
- Peak Current: 450 mA
- Primary Resistance: .160 OHMs
- Secondary Resistance: 630.00K OHMs
- Spark Duration: 450 uS
- Turns Ratio: 100:1
- Coil Color: Blue
- Coil Shape: Square
- Coil Style: Remote Mount
- Coil Wire Attachment: Male/HEI
- Coil Internal Construction: Epoxy
- Ballast Resistor Included: No
- Coil Wire Included: No
- Mounting Bracket Included: No
- Height: 3.000 in.
- Length: 6.000 in.
- Width: 6.000 in.
- Quantity: Sold individually
Street cruisers as well as Top Fuel dragsters trust MSD’s ignition systems as the industry leader for over 40 years. As a result, MSD continues to push the envelope with cutting-edge ignition technology as well as intake manifolds and EFI systems.
