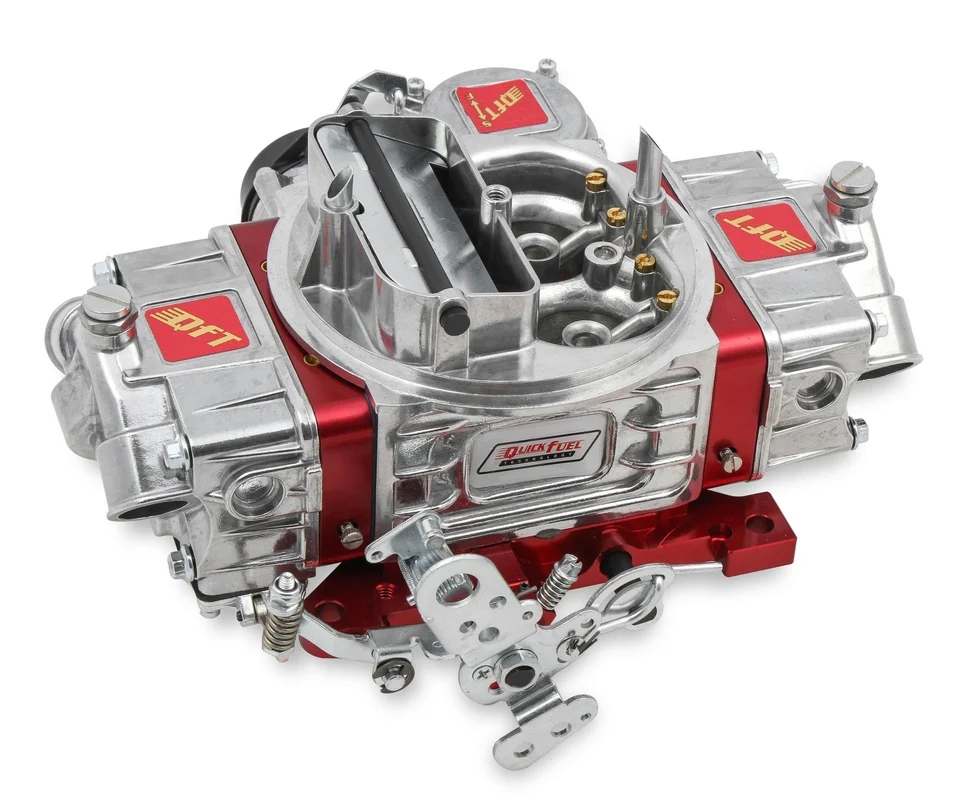

Quick Fuel Technology SS-780-VS SS-Series Carburetor 780CFM VS

Description

780 CFM – 4150 – Vacuum Secondaries – Shiny – Gasoline Super Street Series carburetors combine street-friendly drivability and track-capable performance in a single value-oriented package. Setting them apart from ordinary street carbs, they feature billet dual metering blocks and throttle-bodies that offer tighter tolerances and eliminate porosity. Not only are Super Street Series carbs available with both vacuum or mechanical secondaries, QFT™ also offers models designed and calibrated specifically for E85 fuel and blow-through forced induction applications. Running alternative fuel or boost no longer requires an expensive custom carburetor. All SS-Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Available in 8 different sizes, bolting on the ultimate street/strip carburetor has never been easier.

• •Billet dual metering blocks & throttle bodies for improved durability
• •Changeable idle, high-speed air bleeds & power valve restrictions
• •Dual inlet fuel bowls with dual sight glass windows for easy float adjustment
• •4-Corner idle for precise idle and smooth transition
• •QuickSet™ vacuum secondary housing fully adjustable opening rate by turning
• a screw – no more spring assortments or torn diaphragms.
• •Fully-adjustable electric choke with easy one wire hookup
• •Race-ready with notched secondary floats and jet extensions
• •Polished or Black Diamond™ finish available (some models)

Information:

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16″ x 5 5/8″ bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

Application Summary:
